When an XML document is inserted into Alchemy CATALYST, both the markup and content are processed, however unless an element/attribute is selected to be localized, it will not be displayed in the workspace. By default, Alchemy CATALYST assumes nothing is to be translated in an XML document unless a rule defines that the element/attribute is to be translated. You need to create a parsing rule.

Follow these instructions to specify an element/attribute for translation, to create a parsing rule:

1. Go to HOME >  File types & Parsing Rules.

2.  Click on XML Based Files in the File Group list. Then select the .xml file extension.

   Several rules are available by default.

3.  Select a rule name or create a new rule and click the Edit Rule button.

   Catalyst enables you to append to an existing rule which was created for a different XML file. This means

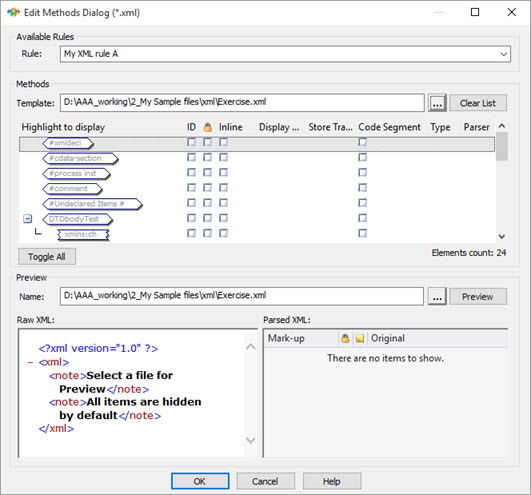

4. In the Edit Methods Dialog, click on the browse button under Template to point to the XML document you wish to create the rules for.

A list of elements and attributes now displays. By selecting suitable methods, you can instruct Alchemy CATALYST on processing XML documents.

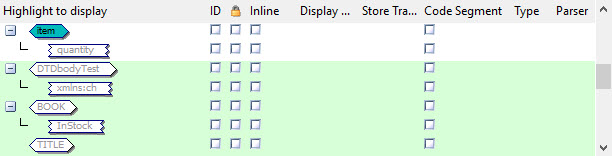

By selecting an existing rule name (in point 3), you can modify or append to this rule. Selecting a template will not overwrite the existing list of elements and attributes but will append to the list, highlighted in green to differentiate the new from the existing elements.

5. To select elements & attributes' content for translation, simply double-click on it. Its color changes when it is selected for translation.
   In the picture above, the "item" element has been selected as translatable and is highlighted. All other elements & attributes in white will not be parsed in the string list using this rule.

   Click on Toggle All to set all elements & attributes as translatable. Click again on the button to deselect all as translatable.

   The Elements count is the number of elements & attributes listed, regardless of being selected of not for translation.

6. To select a method, click the check-box in the appropriate column adjacent to each element or attribute.

There are several methods that can be used to process an element/attribute,

	Locked
	Select this method to lock an element or attribute. Applying a lock ensures that this element or attribute is displayed but cannot be modified during the translation process.
	In-Line
	Select this method to identify elements and attributes that are to be treated as inline tags.  An example of such an element would be bold or underline. This is frequently used when translating paragraph based text segments within XML documents.
	Code-Segment
	Select this method to identify elements that contain code (for example, JavaScript, ASP, CGI, Pearl).  Alchemy CATALYST can then be configured to parse that code segment and extract translation units for display within the XML editors. For more information, see Developing ezParse™ Rules.
	Id
	Select this method if an element can be identified using an unique ID. This is very useful for aligning XML documents or improving the accuracy of translation re-use.
	Conditional-Source
	Select this method if you want to include this element for translation based on a condition. Use XPath to specify this condition.
	Conditional-Target
	Select this method to specify the element that will be used to store the translation.  Use XPath to specify any conditions that may be required.



7. Once you have selected each elements & attributes for translation you can save the rule by clicking OK. And then OK again on the ezParse dialog.

Your Rule is now automatically saved in the Alchemy CATALYST registry. Next time you insert an XML document into a Project TTK, you will be prompted to select the appropriate rule for your XML document from a list displayed on the screen. Alchemy CATALYST will then process the XML document based on the rule you have selected and display only those elements specified for translation in the workspace pane.

The Show All Rule

If you have XML files with continually changing structure/element names or lots of different files with different attribute and element names then you may find that it requires a lot of work to create an individual ezParse rule for each XML file to be localized. Alchemy CATALYST simplifies this process by providing a rule called Show All. This is a default rule that displays all elements/attributes in an XML document so that it can easily be translated without creating a custom rule for it.

This Show All rule is always presented as an option when an XML document is inserted into a Project TTK.
