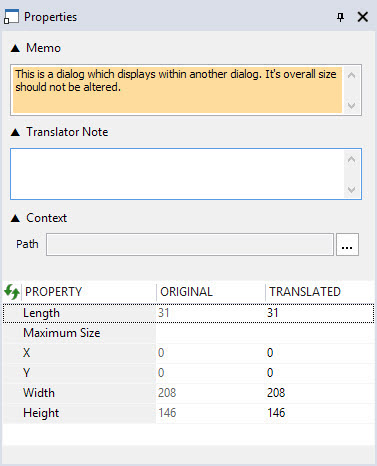

The Properties window displays the properties associated with each individual segment included in TTK projects. Those properties include information parsed directly from the source files, for example coordinates, .NET attributes, text size, etc...
This window is also where users may assign additional properties (also known as MetaData) in the form of Memo, Translator Note, Context link and Maximum size.

The Properties window can be docked or undocked out of view by clicking the button or closed by clicking the button. If closed, display the Results window in VIEW > Properties. Users can make the best use of the screen space with the versatility of positioning or docking the window into any position. Wide and multiple screen users in particular.

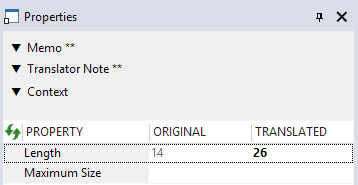

The Memo, Translator Note and Context fields can be collapsed to reclaim space. When collapsed and containing information, those fields will show **, for example:

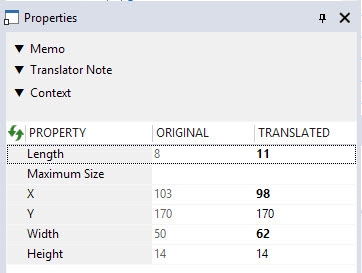

Original and Translated attributes and coordinates in the PROPERTY table are easily compared with the values listed side by side. With any difference highlighted in bold, for example:

Users may change the values in the TRANSLATED column. In the case of dialog coordinates, users can enter the numerical value directly or use the buttons.

Maximum size applied on the translation are displayed in this PROPERTY table. In this example, a maximum size of 28 characters on 2 lines is set:

Learn more about Setting segment properties.
