View Ribbon |
|
|
View Ribbon |

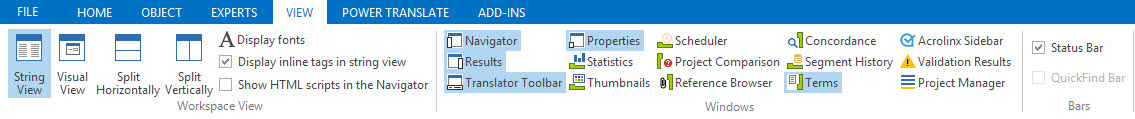

Use the VIEW ribbon to configure the workspace area and docking bars you wish to use.
The Workspace window supports four different types of display orientations.
|
Button |
Description |
|
String View |
This displays only the strings in an organised list in the workspace pane. |
|
Visual View |
This displays project content in highly visual, context rich editors. |
|
Split Horizontally |
Selects String View and Visual View split on horizontal axis. |
|
Split Vertically |
Selects String View and Visual View split on vertical axis.
|
|
Display Fonts |
You can change the fonts that Alchemy CATALYST uses to display source and target text in the Project Workspace. |
|
Display inline tags in string view |
With this option on, all inline tags are visible in the segment list. It is useful for getting a sense of segment complexity, but may not be needed at all times. |
|
Show HTML scripts in the Navigator |
Use this option if there is localizable text in your html scripts. See customizing HTML options |
Click the names to display the matching window in Catalyst's interface. When a name is highlighted in blue, the window is currently opened and pinned in the interface (i.e. permanently visible).
Windows can be minimized to a tab by unpinned them, in which case its name in the ribbon will no longer be highlighted blue.
If you have closed the window entirely by clicking the
button, you can restore the window clicking its name in this ribbon.
|
Button |
Description |
|
Navigator |
Show/hide the Project Navigator |
|
Results |
Show/hide the Results Window |
|
Translator Toolbar |
Show/hide the Translator Toolbar |
|
Properties |
Show/hide the Properties Window |
|
Statistics |
Show/hide the Statistics Pane |
|
Thumbnails |
Show/hide the Thumbnails View |
|
Scheduler |
Show/hide the Scheduler |
|
Project Comparison |
Show/hide the Comparison Results |
|
Reference Browser |
Show/hide the Reference Browser |
|
Concordance |
Show/hide the Concordance Pane |
|
Segment History |
Show/hide the Segment History Pane |
|
Terms |
Show/hide the Terms Window |
|
Acrolinx Sidebar |
Show/hide the Acrolinx SIdebar window |
|
Validation Results |
Show/hide the Validation Results window |
|
Project Manager |
Show/hide the Project Manager window |
|
Button |
Description |
|
Status Bar |
Show/hide the status bar. The status bar is displayed at the bottom of the application and shows useful information such as project languages, and quick access buttons for setting the project view. |
|
Quick Find Bar |
Show/hide the Quick Find bar. |
