Overview: Translator Toolbar

The Translator Toolbar is designed to centralize all the functions that a Translator needs to carry out their work efficiently and quickly.

Translation suggestions are displayed here while glossary matches are listed in the Terms window. If a segment has no translation suggestion available for it, the translator can use Machine Translation to create one for any segment.

1	Translated Text Window
	Translations are entered into this window. Inline tags are displayed graphically and can be moved or deleted using a combination of the keyboard and mouse. Misspelt words are highlighted with a red underline and suggested spellings are displayed in the toolbar drop-down (5).
2	Source Text Window
	This is the original source language text. This may contain blue over-lines that indicate a matches in the glossaries which are displayed Terms window. If a translation memory suggestion is located and displayed in the main Reference window (3).
3	TM Reference tab
	This tab displays Translation Memory matches as well as Machine Translation suggestions. It may contain colored markups to distinguish where the current and TM segments differ. This should be used in conjunction with the % Fuzzy Match figure to determine how good a suggested translation is.
4	TM Match Information
	This panel displays information about the current TM suggestion. It indicates the name of TM from which the match comes. It also gives the percentage match 100% or the fuzzy percentage To the right hand side, it also shows a TM segment's translation state If more than one hit is available, it also displays navigation buttons to advance to next / previous TM matches.
5	Spelling Suggestions
	This displays suggested spellings for misspelt words in the Translated Text window. You can configure a Spell Checker by going to HOME > Settings > Spellcheck.

Select the segment or group of segments from the Workspace pane.

1. Click to Lock each selected segment;
2. Click to mark each segment as Untranslated;
3. Click to mark each segment For Review;
4. Click to mark each segment as Signed Off.

The Translator Toolbar is designed to centralize all the functions that a Translator needs to carry out their work efficiently and quickly.

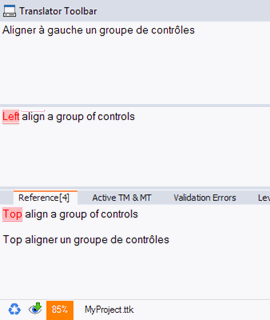

Inline tags in the Translator Toolbar

Inline tags are represented graphically in the Translator Toolbar by colored rectangles with the tag element name. Rectangles pointing to the right represent an Opening tag

, while those pointing to the left are matching closing tag

. A rectangle pointing both ways represent a self closing tag

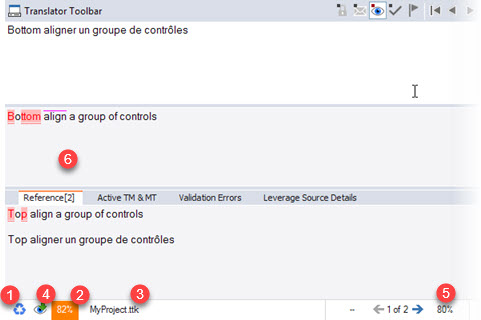

TM Reference Pane

Suggested translations are displayed here. Suggestions can be either identical or similar matches, referred to as Fuzzy Matches. A percentage score is displayed adjacent to each match and several matches may be available for each source segment. When a suggested translation is not a 100% match, the difference are highlighted in Red.

Use the Next and Previous buttons (5) to view different matches for the current segment. The fuzzy value for the next and previous matches are displayed either side of these buttons.

Multiple TMs can be specified in the Active TM tab. This helps achieve higher translation re-use during a project.

1- The source type of the translation suggestion. In the example above, the translation suggestion has come from an Alchemy desktop TM file and the symbol

is used to signify this.

Shortcuts

Recycled Translations

Recycled translations are translated segments that have been translated previously in the current Project TTK. These are also displayed in the Translator Toolbar's Reference tab.

In the example above, the symbol

is displayed as the TM source type. This signifies that the suggested translation comes for the existing Project file and not any active TM.

Similar to TM suggestions, the Status, the Percentage and the filename of the suggestion in are displayed.

Segment Properties

Each individual segment has associated properties which are displayed in the Properties window. The properties range from the segment character count to coordinates.

Second Mouse Button and Accelerators

Use the 2nd mouse button to access the following functionality while working in the Translator Toolbar.

Feature	Description	Shortcut
Next Suggestion	Fetch and display next translation suggestions from Active TMs.	[Ctrl] + [+]
Previous Suggestion	Fetch and display previous translation suggestions from Active TMs.	[Ctrl] + [-]
